A good knowledge and understanding of the dimensions of all the teeth forms the foundation of dental anatomy as well as the dental practice. Dr. G. V. Black provided a table for the average measurements for the permanent teeth, however, teeth carved or drawn from these average dimensions cannot be set into place for ideal occlusion. Hence, minor changes have been made in Dr. Black's table for producing an ideal set of articulated teeth.
Measurement of Teeth

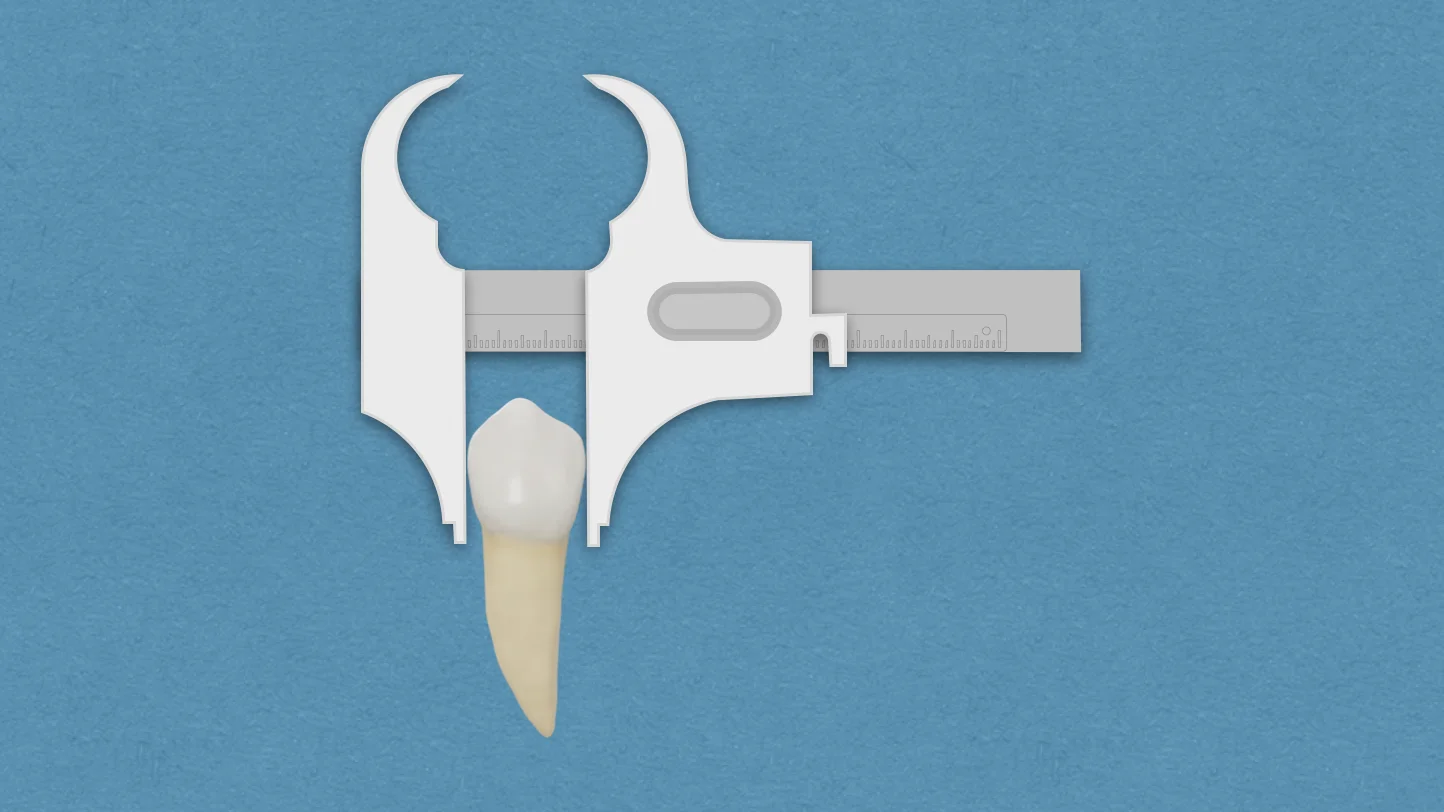

There are eight calibrations of each tooth to be remembered and these are measured using Boley gauge. The parallel beaks of the Boley gauge should be used whenever feasible, as the contrast of various curvatures with the straight edges makes the close observer more familiar with tooth outlines.
- Crown length (labial / buccal) : Crest of curvature at cementoenamel junction to the incisal edge (buccal cusp or cusps).
- Root length : Apex of root to the crest of curvature at crown cervix.
- Mesiodistal diameter of crown : Crest of curvature on mesial surface (mesial contact area) to the crest of curvature on distal surface (distal contact area).
- Mesiodistal diameter of crown at the cervix : Junction of crown and root on mesial surface to the junction of crown and root on distal surface.
- Labiolingual (Buccolingual) diameter of crown : Crest of curvature on labial / buccal surface to the crest of curvature on lingual surface.
- Labiolingual (Buccolingual) diameter of crown at the cervix : Junction of crown and root on labial / buccal surface to the junction of crown and root on lingual surface.
- Curvature of cementoenamel junction on mesial : Crest of curvature of cementoenamel junction on labial (buccal) and lingual surfaces to the crest of curvature of cementoenamel junction on mesial surface.
- Curvature of cementoenamel junction on distal : Crest of curvature of cementoenamel junction on labial (buccal) and lingual surfaces to crest of curvature of cementoenamel junction on distal surface.
Dimensions of Teeth
Maxillary Central Incisor
- Crown length : 10.5 mm.
- Root length : 13 mm.
Maxillary Lateral Incisor
- Crown length : 9 mm.
- Root length : 13 mm.
Maxillary Canine
- Crown length : 10 mm.
- Root length : 17 mm.
Maxillary First & Second Premolar
- Crown length : 8.5 mm.
- Root length : 14 mm.
Maxillary First Molar
- Crown length : 7.5 mm.
- Root length : 12 mm (Buccal), 13 mm (Lingual).
Maxillary Second Molar
- Crown length : 7 mm.
- Root length : 11 mm (Buccal), 12 mm (Lingual).
Maxillary Third Molar
- Crown length : 6.5 mm.
- Root length : 11 mm.
Mandibular Central Incisor
- Crown length : 9 mm.
- Root length : 12.5 mm.
Mandibular Lateral Incisor
- Crown length : 9.5 mm.
- Root length : 14 mm.
Mandibular Canine
- Crown length : 11 mm.
- Root length : 16 mm.
Mandibular First Premolar
- Crown length : 8.5 mm.
- Root length : 14 mm.
Mandibular Second Premolar
- Crown length : 8 mm.
- Root length : 14.5 mm.
Mandibular First Molar
- Crown length : 7.5 mm.
- Root length : 14 mm.
Mandibular Second Molar
- Crown length : 7 mm.
- Root length : 13 mm.
Mandibular Third Molar
- Crown length : 7 mm.
- Root length : 11 mm.
References
- Wheeler's Dental Anatomy, Physiology and Occlusion(2019), Stanley J. Nelson DDS MS, Elsevier.
